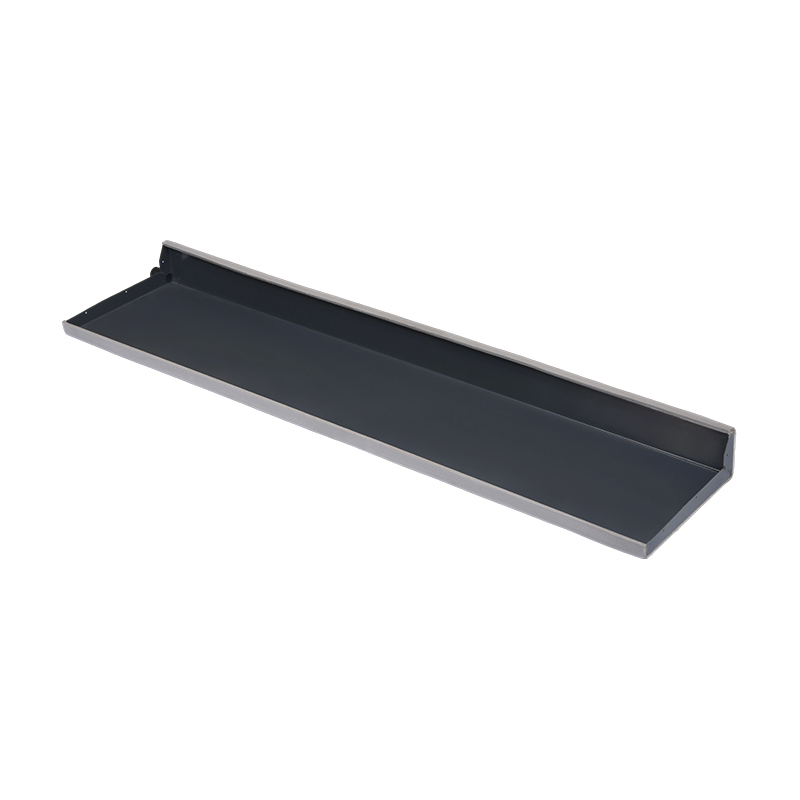

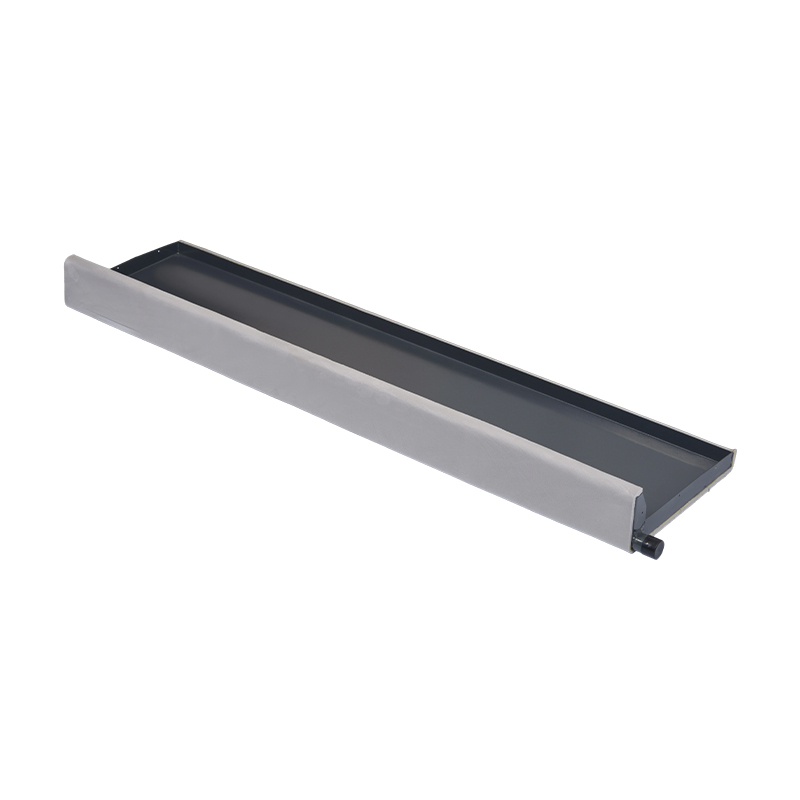

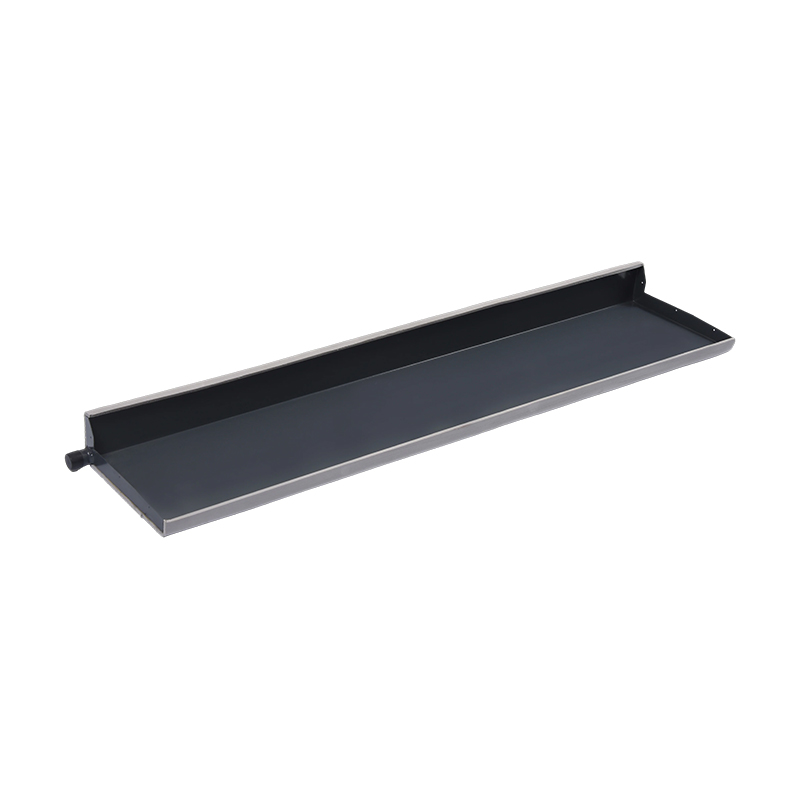

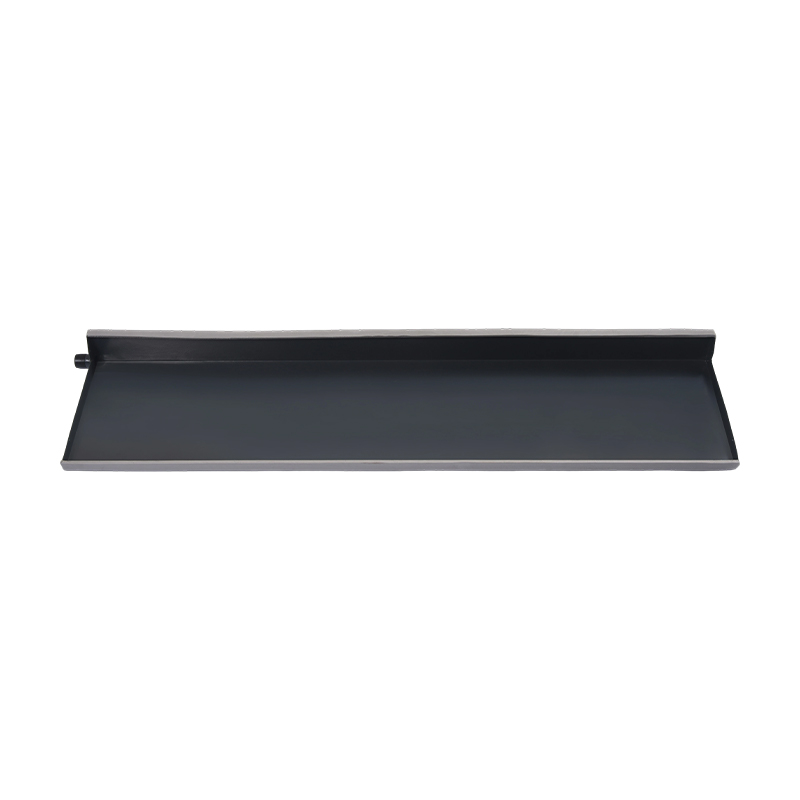

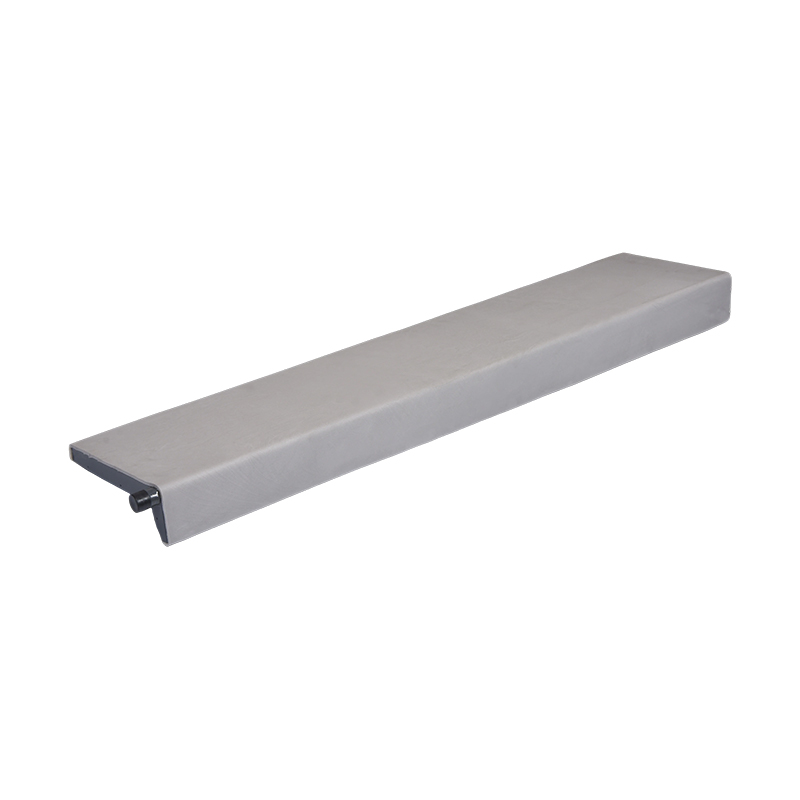

Suspended air conditioner drip tray

The Suspended Air Conditioner Drip Tray is a specialized HVAC drainage component designed to collect and discharge condensate water generated by suspended, concealed, and central air conditioning systems. It effectively prevents water dripping, leakage, equipment corrosion, and indoor moisture damage, ensuring safe and stable operation of HVAC equipment.

Designed for high-altitude and concealed installations, this drain pan combines high-strength sheet metal construction, corrosion resistance, optimized drainage performance, and easy installation. It is widely used in commercial buildings, residential HVAC systems, offices, hotels, and large central air conditioning projects.

Contact Us
PREV: Air conditioner tray drip tray
NEXT: Black air conditioner drain pan

Key Features:

  • High-Strength Sheet Metal Construction
    Manufactured from high-quality galvanized steel or aluminum alloy, the drain tray is formed through precision CNC stamping and bending processes to create a strong and integrated structure. It offers excellent load-bearing capacity, deformation resistance, and long-term stability for suspended installation environments.
  • Customized Design for Different HVAC Systems
    The size, shape, drainage position, mounting structure, and connection interfaces can be customized according to different air conditioner models, condensate volumes, and installation requirements. Options such as flanges, buckles, and customized mounting solutions simplify installation and improve compatibility.
  • Efficient Drainage & Anti-Leakage Design
    The optimized sloped bottom structure allows condensate water to flow quickly toward the drainage outlet. The raised anti-overflow edge design prevents water accumulation and secondary leakage, improving drainage reliability and protecting surrounding equipment.
  • Lightweight & Easy Maintenance
    Through optimized sheet metal design, the overall weight is reduced while maintaining structural strength. Removable panels or cleaning openings can be added for convenient inspection, maintenance, and dirt removal, reducing service time and operating costs.

Product Advantages:

  • Suspended Hidden Installation Design: Saves space and provides a cleaner HVAC installation appearance.
  • Seamless Integral Forming: Reduces leakage risks and improves structural reliability.
  • No Water Pooling Design: Ensures smooth condensate discharge and prevents moisture problems.
  • Pre-Drilled Mounting Holes: Enables fast installation and improves compatibility.
  • Rustproof & Corrosion Resistant: Suitable for long-term HVAC applications.
  • Durable & Cost-Effective: Provides stable performance with low maintenance requirements.

Manufacturing Advantages:

With professional HVAC sheet metal fabrication capabilities, we provide customized suspended drain pan solutions from design development, material selection, precision forming, surface treatment, to final inspection.

Our manufacturing system supports customized dimensions, special mounting structures, and bulk production requirements, providing reliable condensate drainage solutions for HVAC manufacturers, contractors, and distributors worldwide.



Product Specifications
Product Name Suspended Air Conditioner Drip Tray / Suspended AC Drain Pan
Core Function Condensate Water Collection and Drainage
Material Options Galvanized Steel, Aluminum Alloy (Customized)
Manufacturing Process CNC Stamping, Bending, Sheet Metal Forming
Surface Treatment Powder Coating, Phosphating, Anodizing (Optional)
Installation Suspended Mounting with Pre-Drilled Holes
Structure Sloped Bottom with Anti-Overflow Edge
Application Concealed AC Systems, Central Air Conditioning, Commercial & Residential HVAC Systems
FAQ
  • Minimum Order Quantity (MOQ)？
    We have flexible MOQ requirements to support your procurement needs. For most regular single products, the minimum order quantity is 50 pieces. For small hardware products such as barbecue grills, air conditioner condensate drain pans and various mounting brackets, the MOQ is 100 pieces. We can adjust the MOQ appropriately according to your actual order demand to meet your procurement plan.
  • Standard & Customized Product Quotation
    We are professional in customizing various hardware sheet metal products and plastic parts. We will prepare and send you the detailed official quotation sheet within 3 working days. To ensure the accuracy of the quotation, please kindly inform us of the specific product models, specifications and customization requirements you need. We will provide you with the most reasonable and targeted price based on your detailed demands.
  • Packaging Solutions & Customization Service
    Our standard packaging adopts foam inner protection, carton outer packaging and outer plastic film winding, which can effectively protect products from damage during long-distance transportation. Meanwhile, we fully support personalized packaging customization. We can adjust the packaging specification, material and appearance according to your exclusive requirements to meet your supermarket sales and brand display needs.
  • Production Cycle & Delivery Time to Munich
    We have mature and efficient production capacity, with a daily output of 1,500 pieces for single products. Under conventional order quantities and production requirements, the total production cycle will not exceed 3 months. To support your urgent delivery demand, we can arrange overtime production, and the production period can be shortened to more than 1 month at the fastest.In terms of logistics, we adopt the FOB Ningbo cooperation term for all export businesses, which is the most secure and mainstream trade term. The sea freight from Ningbo Port to Munich, Germany takes about 50-60 days. We provide flexible logistics cooperation solutions: if you do not have a cooperative forwarder, we can recommend reliable logistics resources for you; if you need one-stop full shipping service, we can arrange the whole process for you. It is worth mentioning that if you confirm cooperation under FOB terms, the larger your order quantity, the more substantial price discounts and preferential policies we can offer. Meanwhile, we will provide you with more free value-added services accordingly.
  • Value-added Services & Compliance Support
    We provide free product customization and label pasting services for all cooperative customers. We support product production with multiple materials including stainless steel, galvanized sheet and aluminum sheet for your selection. Among them, stainless steel features strong corrosion resistance and durability with a slightly higher price; galvanized sheet has the highest cost performance and is the most cost-effective choice; aluminum sheet is low in price but poor in corrosion resistance, so we do not recommend it for long-term use.In terms of export compliance, we have complete product qualification certificates. We can fully cooperate with you in providing all official documents and materials required for German import customs clearance, and assist you in solving all compliance-related problems to ensure smooth customs clearance of goods.
  • Product Catalog & Company Strength
    Most of our previous orders are customized according to customers’ specific requirements, so we do not have a universal fixed price list. Upon receiving your inquiry, we will promptly send our official product catalog and price list of regular hot‑selling items for your reference. After you confirm target products and place a definite purchase order, we will prepare a precise, customized quotation for you without delay. We will immediately issue the production schedule, carry out manufacturing strictly in accordance with the schedule, and fully guarantee on‑time delivery.
