Name: V-shaped water collection tray
Rating: 5 (99 reviews)

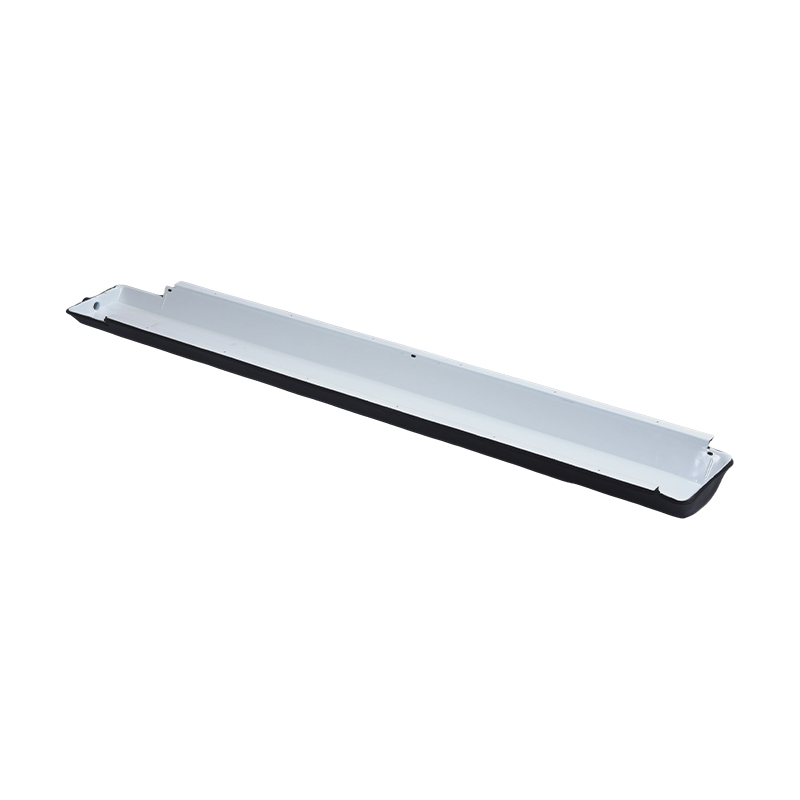

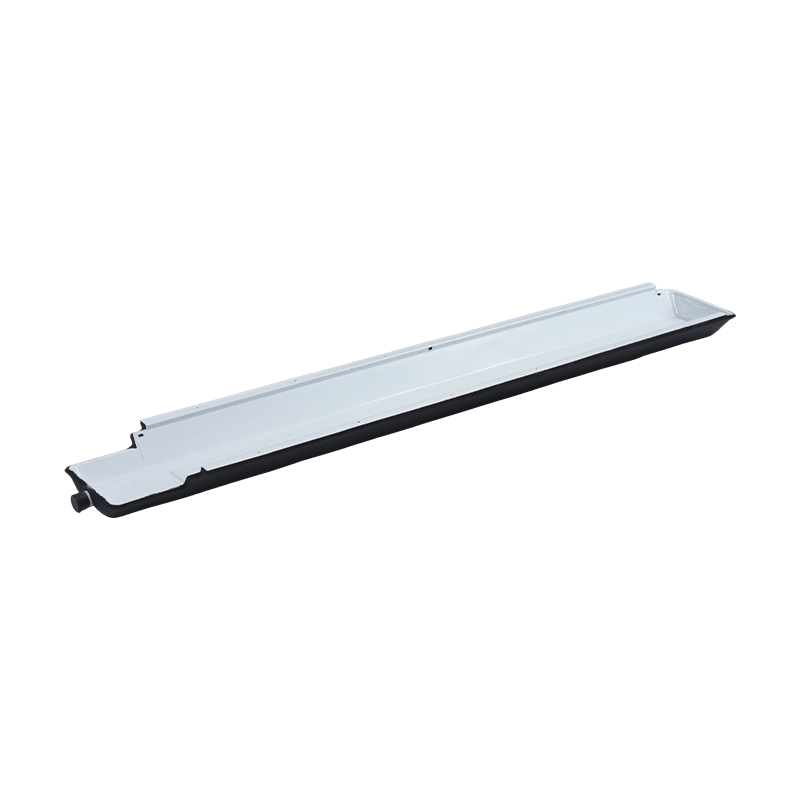

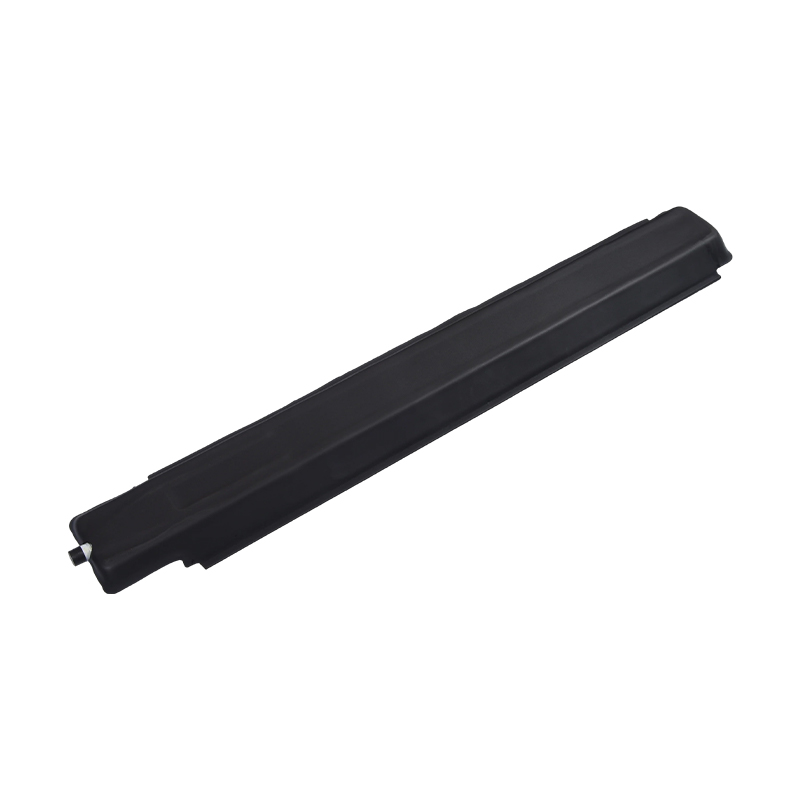

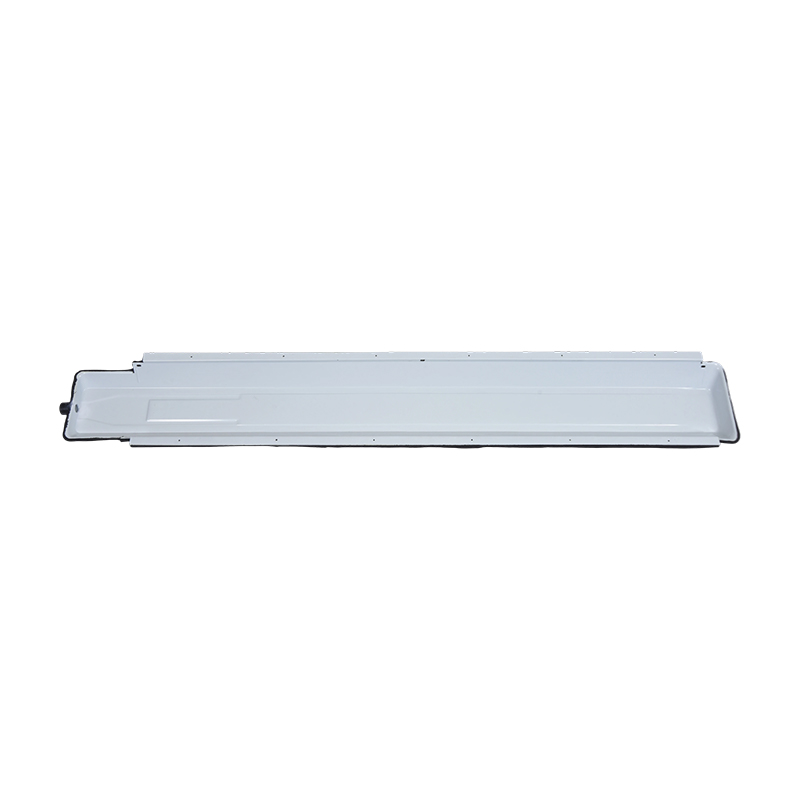

V-shaped water collection tray

The V-Shaped Air Conditioner Water Collection Tray is a high-efficiency condensate drainage solution designed for residential air conditioning systems, central HVAC units, ceiling air conditioners, and refrigeration equipment. Featuring an optimized V-shaped groove structure, it quickly collects and guides condensate water to the drainage outlet, preventing water accumulation, overflow, and leakage.

Manufactured through precision sheet metal cutting and bending technology, this drain tray combines strong structural durability with easy installation and long-term corrosion resistance. It is an ideal solution for residential, commercial, and industrial HVAC applications requiring reliable condensate management.

Key Features:
V-Shaped Groove Design for Efficient Drainage
The V-shaped cross-section uses gravity-based water flow to achieve centralized condensate collection and rapid discharge. The optimized slope design prevents water residue and stagnant water, helping reduce the risk of mold growth, unpleasant odors, and secondary leakage caused by moisture accumulation.
Customized Structure for Different Installation Conditions
The drainage angle, size, shape, and outlet position can be customized according to different HVAC systems and installation environments. Whether used with residential air conditioners, ceiling units, or industrial cooling equipment, the tray provides flexible adaptation solutions.
High-Precision Sheet Metal Manufacturing
Manufactured using advanced processes including laser cutting, precision bending, and forming, the tray features high dimensional accuracy, excellent structural strength, and reliable load-bearing performance. Available materials include stainless steel, galvanized steel, and aluminum alloy to meet different application requirements.
Corrosion-Resistant & Durable Surface Treatment
The surface can be treated with powder coating, anodizing, or passivation to improve resistance against moisture, oxidation, and environmental corrosion. The reinforced structure provides high hardness, deformation resistance, and extended service life.
Easy Installation & Flexible Integration
Designed with reserved mounting holes, the tray allows quick and convenient installation. Its lightweight structure makes it easy to integrate with standard AC brackets, outdoor units, and HVAC equipment, reducing installation time and maintenance difficulty.

Manufacturing Advantages:

With professional HVAC sheet metal processing capabilities, we provide customized condensate drainage solutions covering design optimization, material selection, precision fabrication, surface treatment, and quality inspection.
Our production capabilities support both standard products and customized projects, including special dimensions, drainage layouts, and functional upgrades. We help HVAC manufacturers, contractors, and distributors worldwide achieve reliable and cost-effective water management solutions.

Product Advantages
V-Shaped Water Collection Structure	Centralized drainage with no water residue.
Fast Condensate Discharge	Effectively prevents overflow and leakage.
Strong & Durable Construction	High hardness, anti-deformation, long service life.
Rust & Corrosion Resistant	Suitable for humid HVAC environments.
Easy Installation	Reserved mounting holes for quick assembly.
Customizable Design	Supports customized sizes, outlets, interfaces, and surface finishes.
